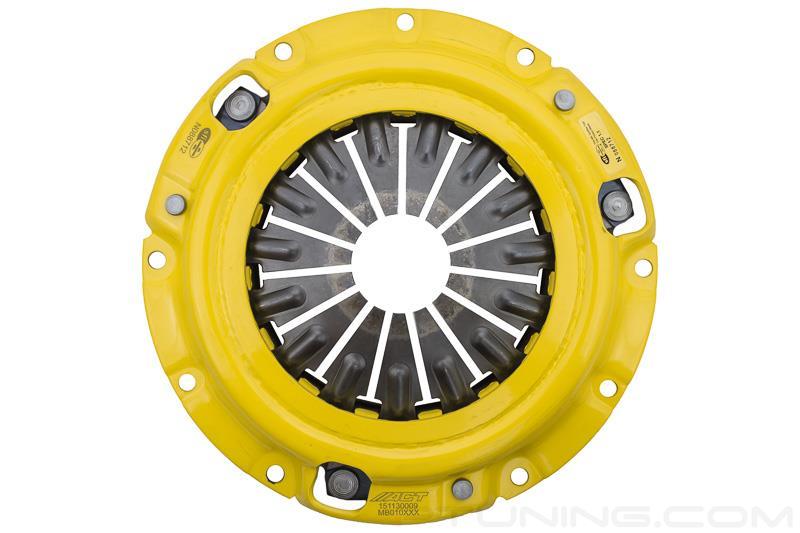

ACT MB010XXX - Custom Xtreme Clutch Pressure Plate

When your engine puts out performance, you need a pressure plate that can handle it properly. All ACT pressure plates provide a generous increase in clamp load which directly increases torque capacity.

ACT heat-treats their diaphragms using an exclusive 3-stage process. They also harden the release bearing contact area to reduce wear. Each pressure plate is designed in the optimum working range for maximum clutch life, clamp load, and release travel. Every pressure plate is tested to insure proper clamp load every time.

Offered in four configurations, ACT has the perfect pressure plate for your application!

Sport ‘SP’ Pressure Plate

• Great for Street Use
• 20% to 40% Clamp Load Increase
• Best Disc to Use: Street Disc
• Stock to Moderate Pedal Feel

Heavy Duty ‘HD’ Pressure Plate

• Great for Street Performance
• 20% to 50% Clamp Load Increase
• Best Disc to Use: Street or Sprung Race Disc
• Stock to Moderate Pedal Feel
• Many SFI Certified to Ensure Safety

Xtreme ‘XT’ Pressure Plate

• Great for Street and Track Performance
• 50% to 120% Clamp Load Increase
• Best Disc to Use: Street or Sprung Race Disc
• Moderate to Stiff Pedal Feel
• ALL Certified to Meet SFI Spec 1.1

MaXX Xtreme ‘XX’ Pressure Plate

• Built for Track
• 70% to 150% Clamp Load Increase
• Best Disc to Use: Solid or Sprung Race Disc
• Stiff to Very Stiff Pedal Feel
• ALL Certified to Meet SFI Spec 1.1
